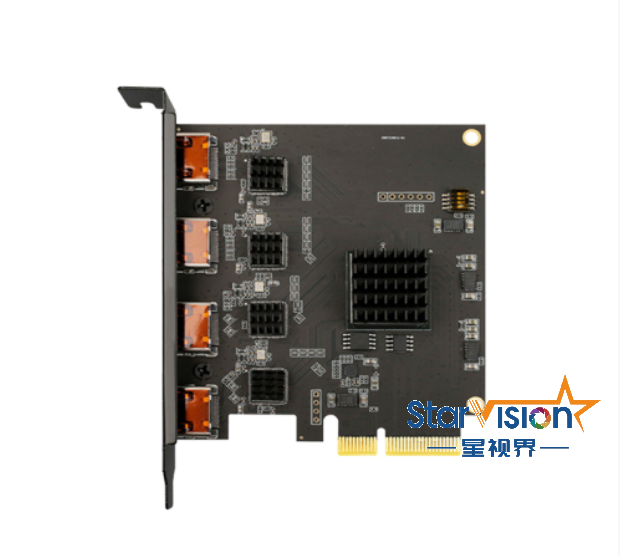

SV3004HDMI Video Capture Card
Host interface: PCIE 2.0 X4 20Gb/s transfer bandwidth
Input format: HDMI 1.4
Output color: YUY2
Input resolution: Up to 1080P@60fps
Hardware support: 1080 interlaced scanning, 3D noise reduction
System support: Windows XP/7/8.1/10 32-bit/64-bit; Linux (v4l2)
、

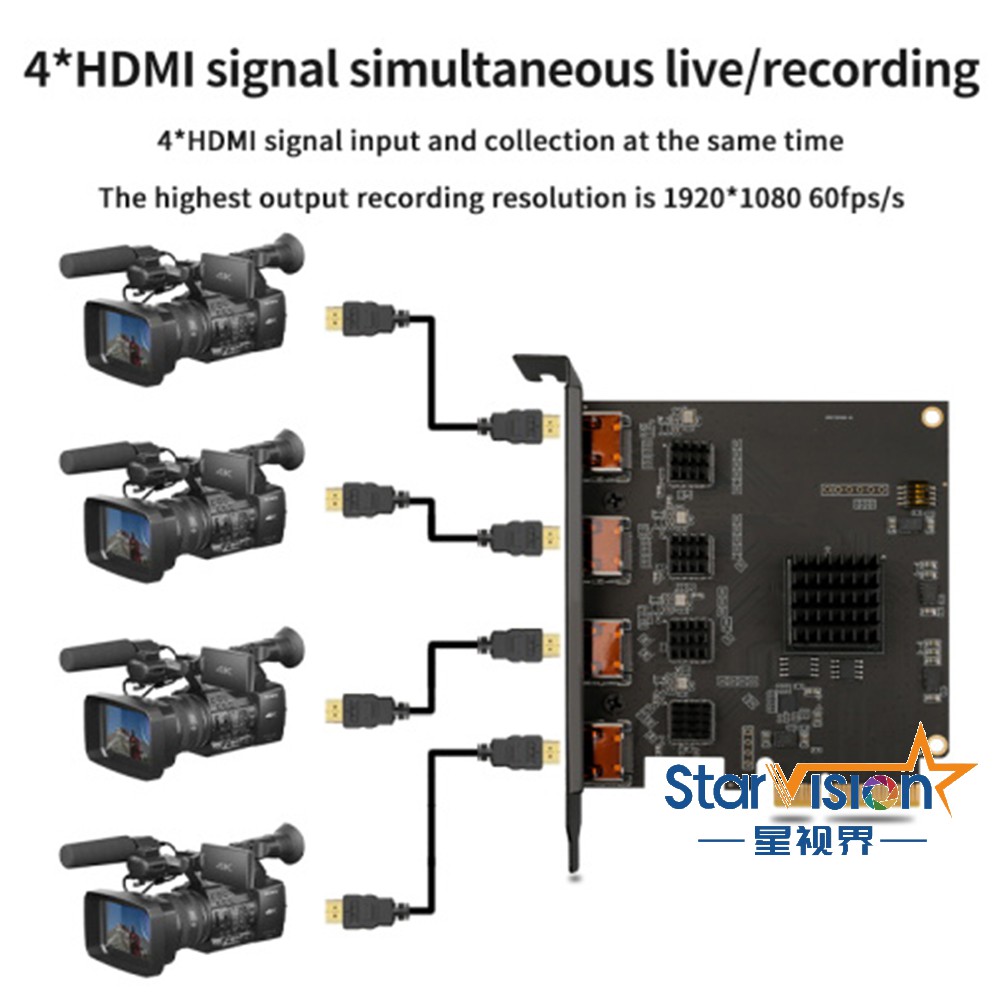

Four-channel HDMI Input PCIe Capture Card

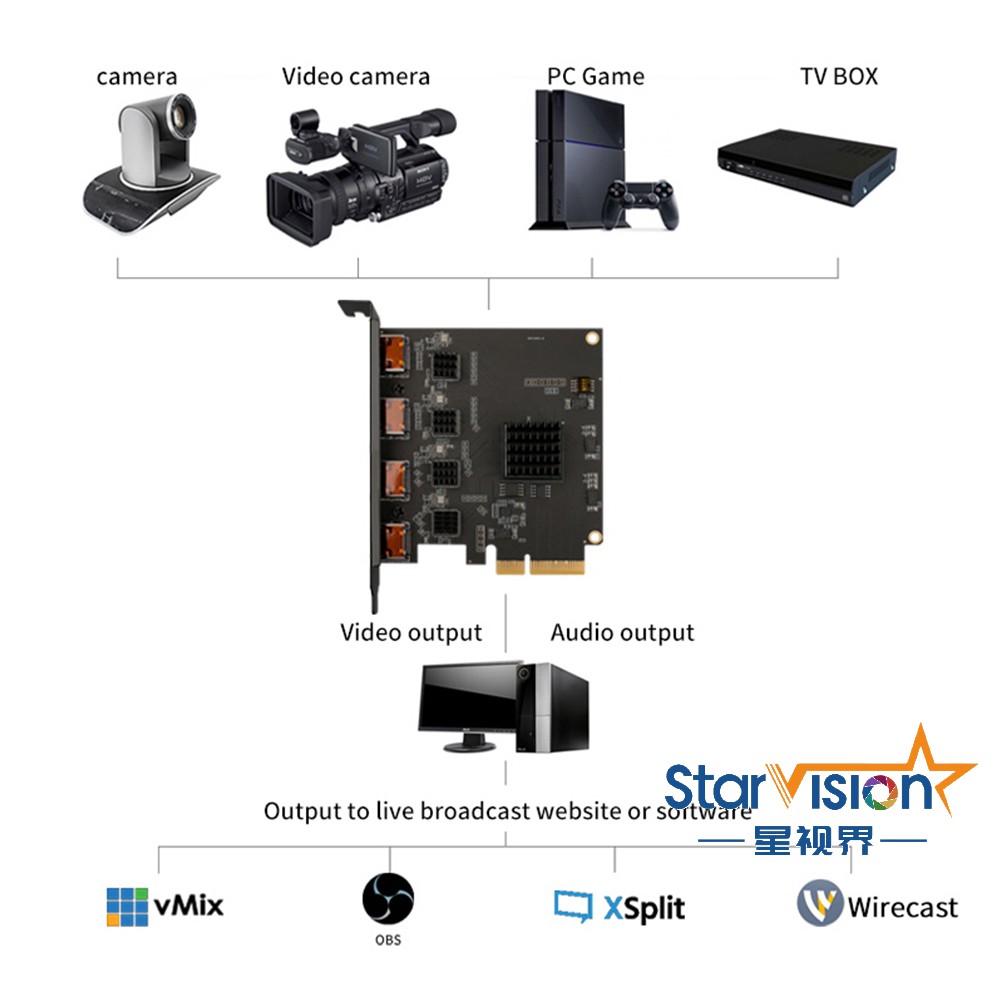

A PCIE capture card is a device that allows you to capture and record video from various sources (such as DVD players,
game consoles, or security cameras) and transmit it to your computer via the PCI Express (PCIE) slot.
Different types of PCIe capture cards each have their own set of features and functions.
Some capture cards are designed specifically for gaming, while others are aimed at professional video production.
PCIE capture cards offer low latency, with minimal delay between video capture and screen display.
Suitable for gaming or live streaming.
Product Features
HDMI input up to 1080p60Hz, supports 1080i
PCIe captures media stream up to 1080p60Hz
Audio capture HDMI embedded SD / HD / FHD
Efficient heat sink
Multi-card shared matrix construction
