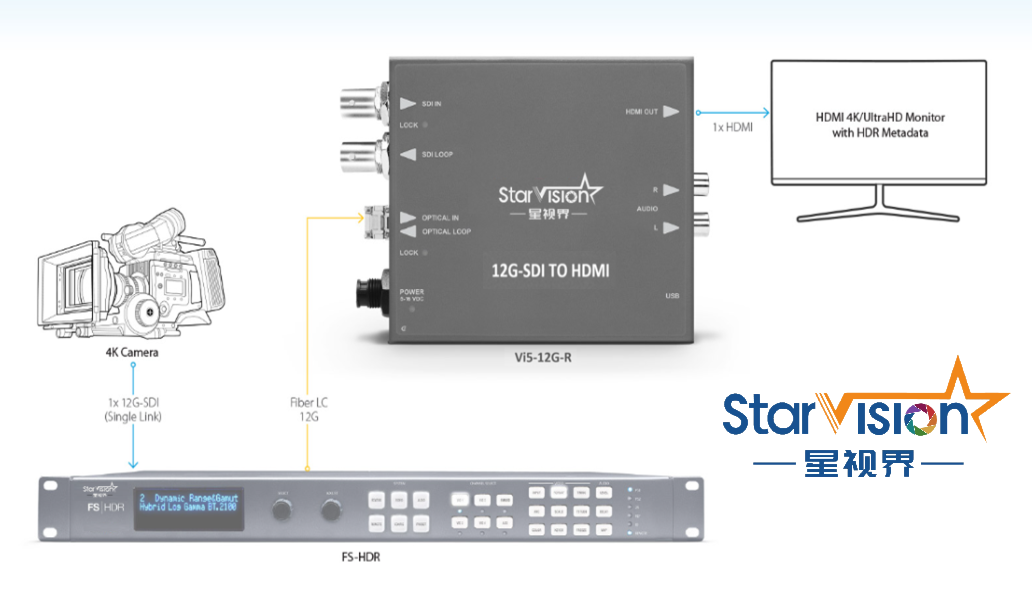

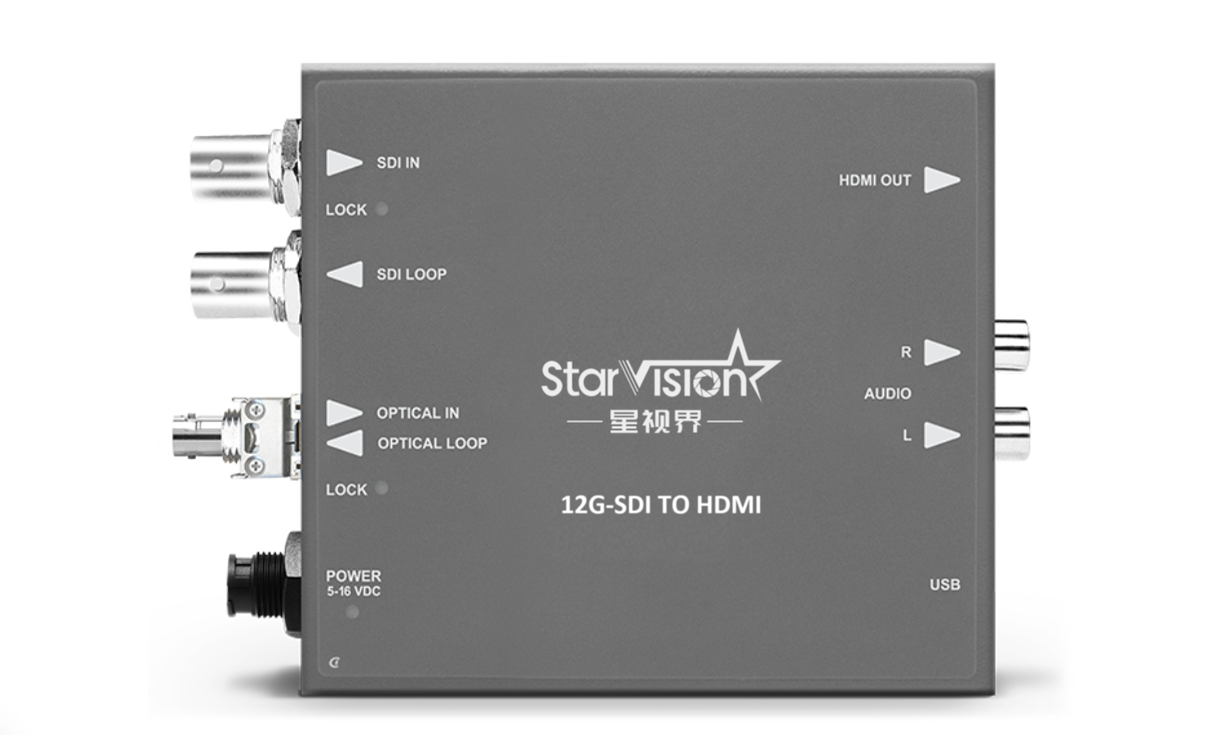

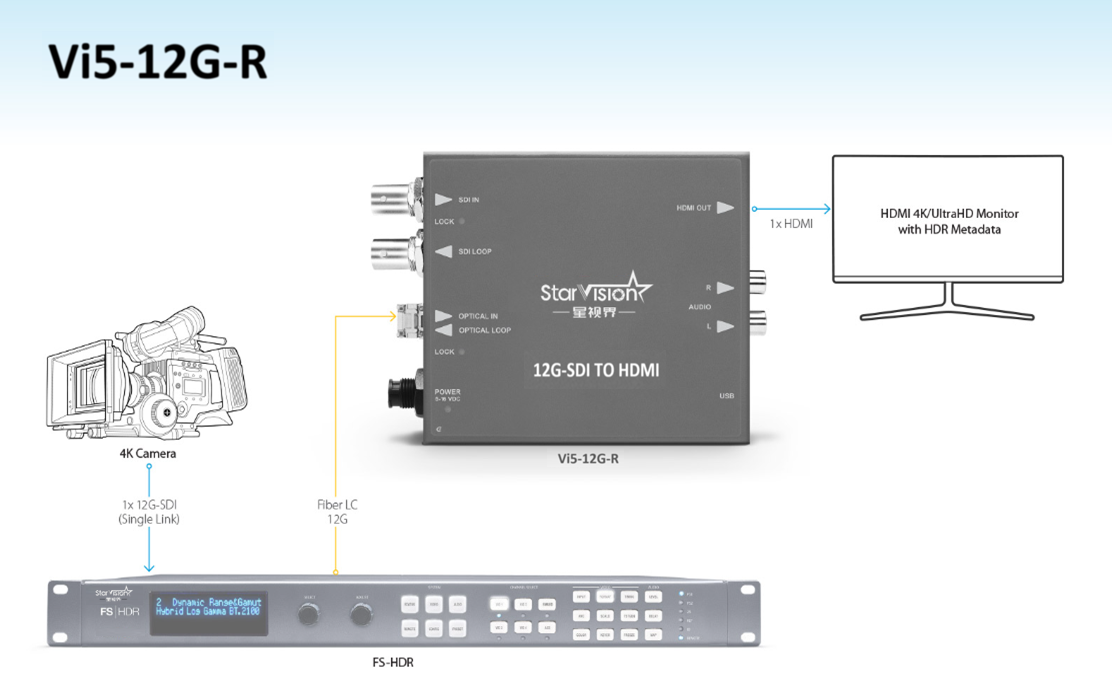

SVi5-12G-R HDMI/SDI Converter is a new 12G-SDI to HDMI 2.0 ultra-high-definition converter from StarVision Tech Company, supporting 4K/UltraHD 60p via 12G ST Fiber connection. HDR support includes HDR10 metadata compliant with HDMI 2.0/CTA-861.3 standards, and it also supports HLG over HDMI.

Video Input Formats

1x 12 Gb SDI

(4K) 4096 2160p 23.98, 24, 25, 29.97.30, 50.59.94.60

(UltraHD) 3840x 2160p 23.98,24,25, 29.97,30,50, 59.94, 60

1x 6 Gb SDI

(4K) 4096 x 2160 23.98,24,25,29.97,30

(UltraHD) 3840x 2160 23.98,24,25, 29.97,30

1x 3 Gb SDI(Level A or B-Dual Link)

(2K) 2048x 1080p 23.98,24, 25,29.97,30,50,59.94, 60

(HD) 1920 x 1080 23.98,24,25,29.97,30,50,59.94,60

(HD) 1920 x 10801 50, 59.94, 60

(HD) 1280 x 720p*50, 59.94,60

1x 1.5 Gb SDl

(2K) 2048x 1080p 23.98,24, 25,29.97,30

(HD) 1920 x 1080p 23.98, 24,25,29.97,30

(HD) 1920 x 10801 50, 59.94, 60

(HD) 1280 x 720p 50,59.94, 60

1x 270 Mb SDl

(5D) 625150

(5D) 5251 59.94

RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit

*1280 x 720p is Level A Only

Note: Raster and Frame Rate Dependent, please see Vi5-12G Video Formats in Documents and Manual.

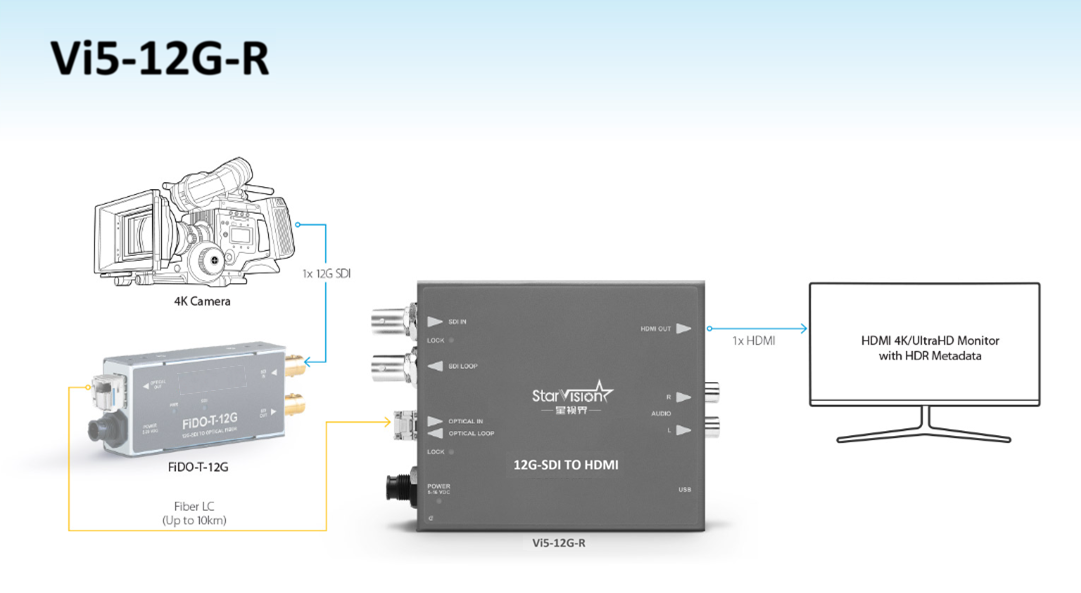

Fiber Input

1. Raster and Frame Rate Dependent, please see Vi5-12G Video Formats in Documents and Manual.

2. If a connected monitor doesn't support HDMl protocol the unit automatically switches to DM protocol, which does not pass audio.

Video Output Digital

1x HDMI Type A connector*, HDMI v2.0b

Fiber Output

(Vi5-12G-TR)

1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082o Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm(max)

Optical Power:-5 dBm (min), 0.5 dBm (max)

Extinction Ratio: 5.4 dB (min)

Audio Input Digital

SDl embedded audio, 24-bit, 16-channel Audio Output Digital

HDMl embedded audio, 24-bit, 8-channel

Audio Output Analog

2x RCA style connector, 2-channel -10dBu (nominal)

User Interface

USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

Size (w x d x h)

4.6'x 4.02 x 0.9" (116.84 X 102.11 x 22.86 mm)

Weight

0.5 lb (0.3 kg)

Power

5-16VDC regulated, 11 watts, power supply required included with purchase

AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (40 to 140 F)

Operating Relative Humidity: 10-900 noncondensing

Operating Altitude: <3,000 meters (<10.000 feet)

*SVi5-12G, SVi5-12G-R SVi5-12G-TR and SVi5-12G-R-ST each use approximately12 watts of powver and convection cooling. It will be very warm to the touch, which is normal When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the 12GM with other mini-converters
