Motion adaptive interlaced to progressive scan

Advanced signal processing technology and unique video processing engine - motion adaptive interlaced to progressive scan, achieve excellent fast response performance for fast motion images, solve the blurring and jaggedness problems of moving images through precise algorithms, make the image clearer and smoother, meet the various applications and scenarios of higher image requirements, such as sports live broadcast, camera pan/tilt and subtitle scrolling, etc.

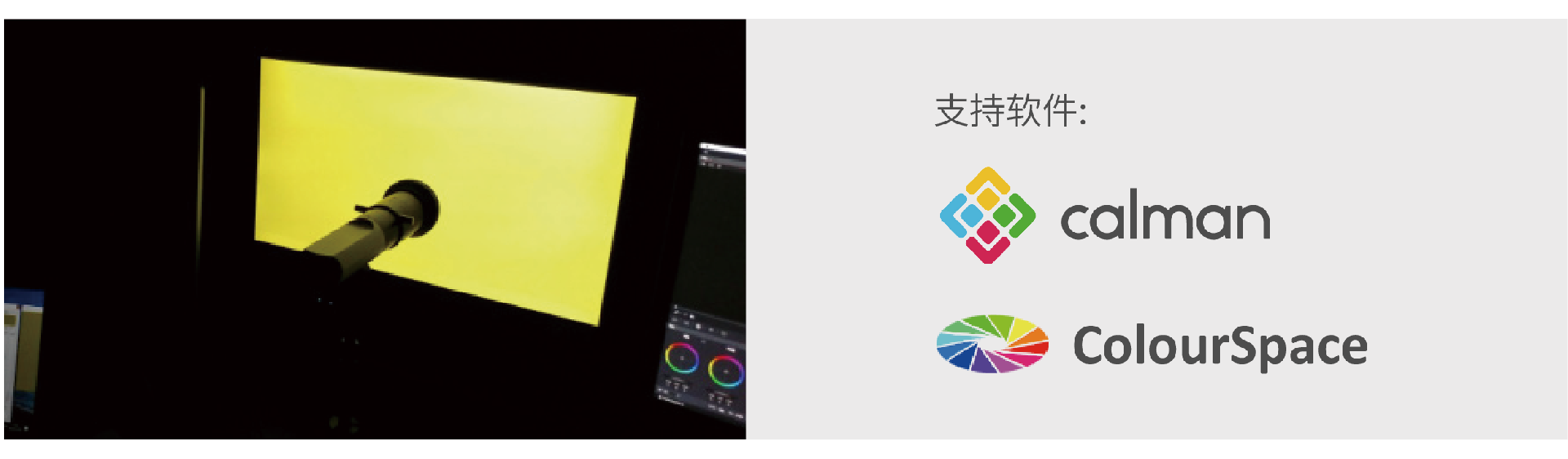

ColorSpace and Calman Color Correction Software

Konvisun monitors use Klein K10-A and CR300 high-precision color calibration instruments for factory calibration. The calibration accuracy of K10-A is 100 times that of a standard analyzer i1 Display Pro. The spectral bandwidth of CR300 reaches an astonishing 2 nanometer level, with a wavelength resolution as high as 0.8nm/pixel, and its extreme low brightness measurement reaches the top level in the world. With the advent of 4K and 8K ultra-high-definition era, to achieve more realistic color performance and detailed reproduction of HDR high dynamic range, high-precision calibration instruments have become essential for 4K monitor calibration. Konvisun monitors ensure precise color reproduction capabilities through the use of top-tier calibration instruments and a comprehensive color management system.

Supports importing custom 3D LUT color tables

Users can load 2 different types of 3D LUT files according to their needs, making DIT and post-production work simpler and more intuitive, optimizing workflows and improving efficiency.

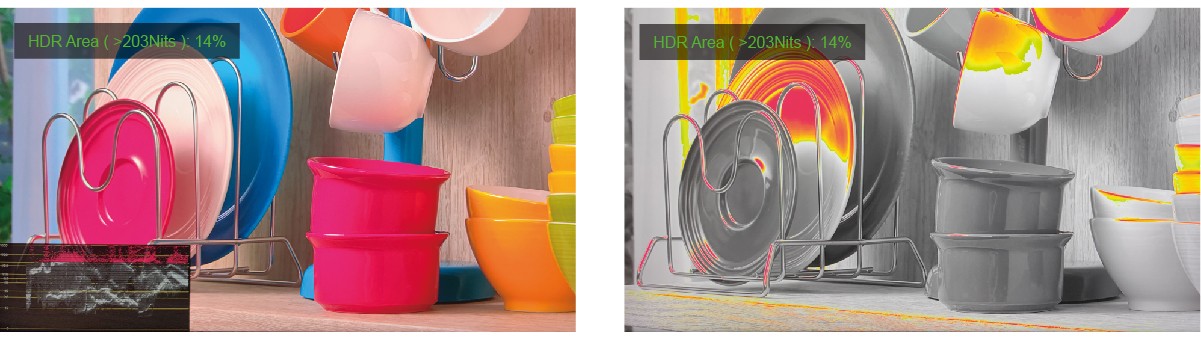

Supports HDR waveforms, displaying brightness values (nits), and HDR proportion analysis.

The HDR reference white is set at 203 nits; any part exceeding 203 nits is considered HDR highlight, and the proportion of HDR highlights should not exceed 20% of the overall image. The HDR waveform and HDR percentage display functions make HDR data analysis more intuitive and convenient, allowing creators to more easily grasp the reasonable proportion of HDR elements within the entire image, achieving better artistic creation results.

High Dynamic Range (HDR) Display

The Convoy 8K and 4K series and Full HD KVM-6X series monitors support HDR display functionality, with optional HDR modes including PQ (ST2084) and HLG. They support displaying a wider brightness dynamic range and provide an extremely high level of image quality and image reproduction.

2SI and SQD formats 4K/8K signal modes

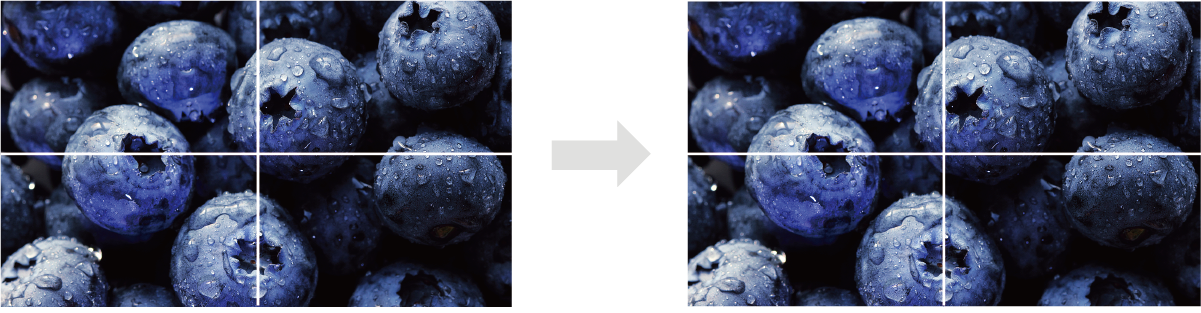

4K/8K 2 Sample Interleave (2SI) mode: based on pixel splitting

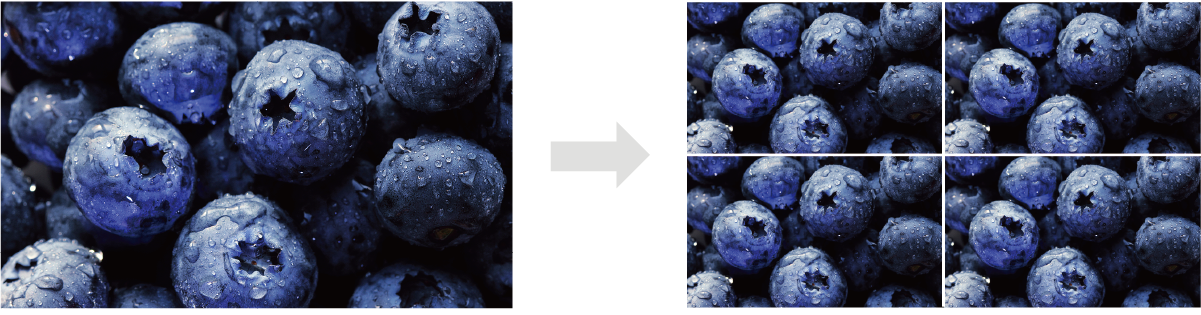

4K/8K Square Division (SQD) mode: based on quadrant division

Four-stroke mode supports simultaneous mixed display of different formats

The quad-split mode supports the simultaneous mixed display of signals in different formats such as 4K, HD, and SD (i/p). Any two paths can be displayed full-screen with one click, and any four paths can also be set to full-screen display via GPI control. The color space and dynamic range of each picture can be set separately. HDR waveforms can be independently displayed on all four pictures.

Supports multiple gamma and EOTF curve conversions

The Konveksee 8K and 4K series monitors support Gamma 2.0, 2.2, 2.4, and 2.6 selections and offer multiple EOTF curve conversions suitable for broadcast and digital cinema standards, including SONY S-log1/2/3, ARRI Log-C, Canon C-log1/2/3, and Panasonic V-log/log(softroll), ensuring perfect integration with camera systems.

Dark area detail viewing function

The black stretch function is designed to enhance the brightness of low-brightness areas in the image while increasing shadow details. It does so without reducing the image quality in bright areas, without changing the black level, and without affecting midtones.

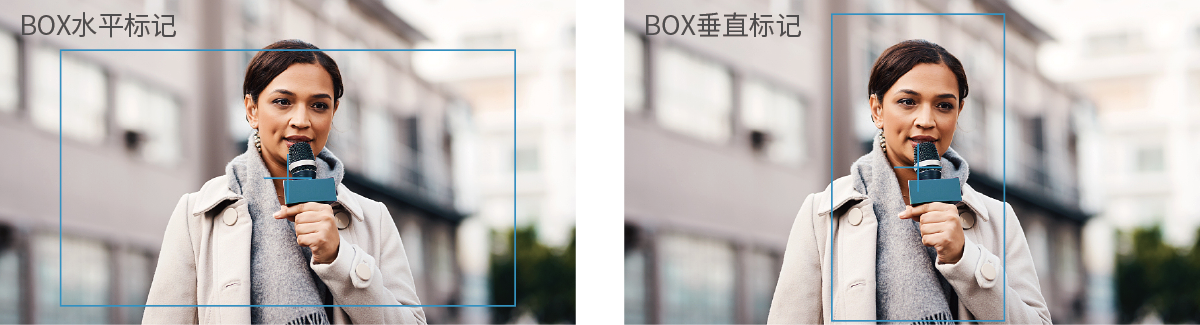

4K BOX Marking Function

The BOX function allows flexible setting of the height and width of the security frame on the monitor, as well as shifting its position up, down, left, and right. It facilitates photographers to adjust flexibly according to the frame ratio during shooting, bringing great convenience to achieving simultaneous production and broadcasting for traditional television and mobile devices.

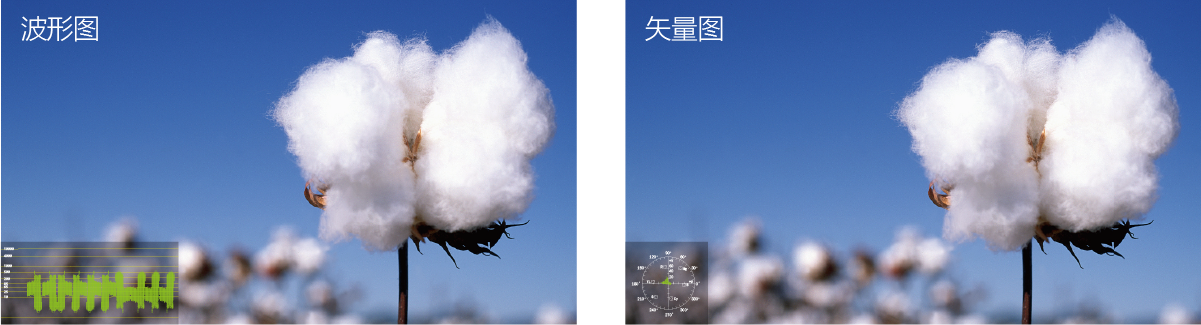

4K HDR Waveform | Vector Graphic

4K HDR Waveform, SDI, and HDMI (optional) signals are supported: waveform, vector scope, histogram, audio phase, and other functions; and all of these multiple image analysis functions can be displayed simultaneously at the bottom of the screen, with measurement accuracy reaching the level of professional test instruments. The waveform also has a peak alarm function.

Auxiliary focusing function

The assisted focus feature displays images with red sharpened edges to help photographers with focusing. This feature works best when combined with the zoom function.

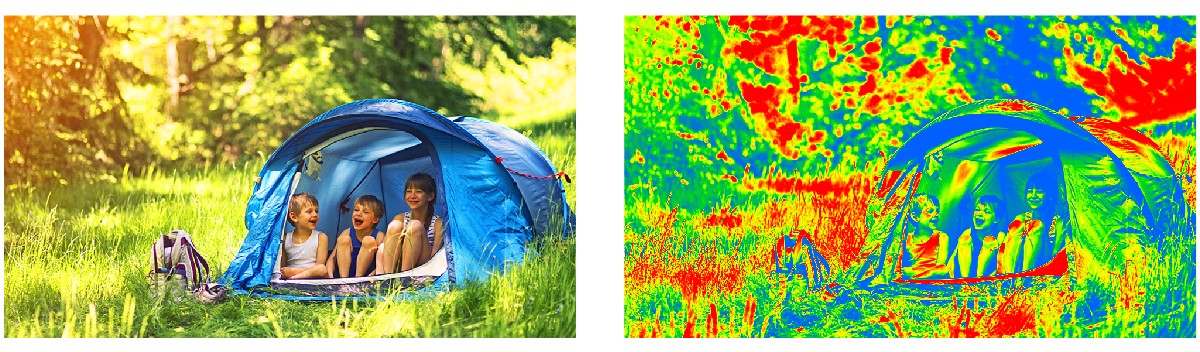

False color function

False color function refers to analyzing the brightness distribution of the entire image and displaying it with warm and cool colors, making it convenient for lighting during shooting and post-production.

Zebra pattern

Zebra pattern function refers to the appearance of zebra stripes on the monitor screen when the exposure exceeds the preset value, accurately reflecting the exposure condition of the video frame, helping to prompt the camera operator to adjust the aperture to obtain the appropriate exposure value.
