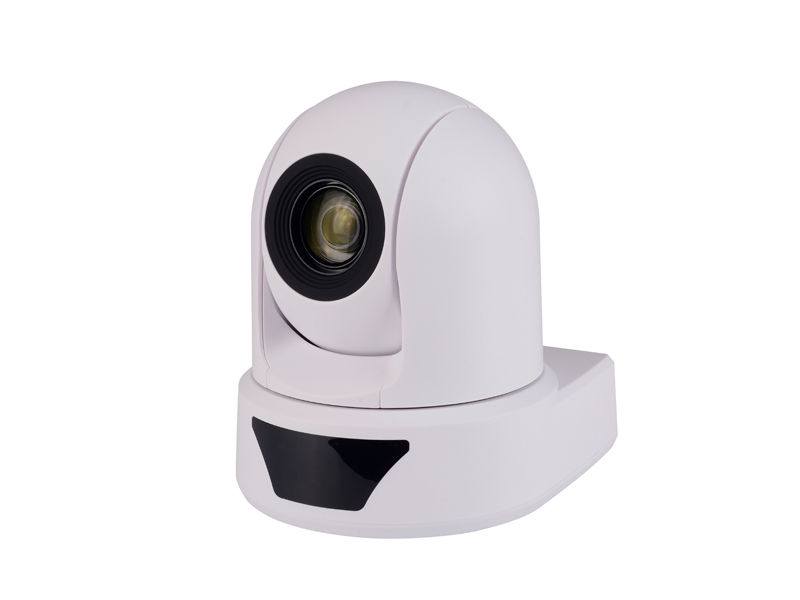

SV200HP POE Conference camera
Full HD, high-performance 20x 1080P60/50
Suitable for business, education, and telemedicine application fields, the PTZ high-definition color camera
features 20x optical zoom and 60FPS high frame rate. It can capture high-quality color video images in business conference rooms, classrooms, training centers, and medical rooms.
Users can transmit power, control, and video signals to high-definition display devices and controllers up
to 100 meters (optional) away through a single CAT.5e/CAT6 network cable. This significantly saves wiring
materials, time, and costs.
Equipped with advanced servo control algorithms, this camera achieves precise, smooth, and quiet PTZ control.
Its wide-angle lens can easily cover everyone in the room during video conferences. With 255 preset positions,
it allows for easy and quick reproduction of clear images without disturbing speakers or viewers.
The camera uses SONY's sensitive EXMOR CMOS image sensor to ensure detailed full HD images and
high-level resolution. The maximum 60FPS high frame rate operation ensures that moving targets are
captured naturally and clearly.
For easy control and viewing, while being able to automatically receive VISCA commands and PELCO-P/D
protocol commands, you can choose to use an RS232 or RS485 interface at the receiving end
# Precise, Smooth, and Quiet Stepper Algorithm for PTZ Control
Using advanced control algorithms and precise stepper motor drivers, it operates very quietly, smoothly,
and stably, allowing for precise and rapid movement to the desired position and enabling wide-range shooting.
# One Network Cable for All Signals
Users can transmit power, control, and video signals over a single CAT.5e/CAT6 network cable up to 100 meters
(optional) away to high-definition display devices and controllers.
# True Full HD High-Definition Images
Using a 1/2.8-inch, 2.1-megapixel high-quality HDCMOS sensor, it achieves high-quality images with ultra-high
resolution of 1920x1080. The output frame rate can reach up to 60/50 frames per second. While maintaining
high clarity, it focuses on meeting the demand for smooth picture flow.
# Low Noise High Signal-to-Noise Ratio
2D and motion estimation-based 3D noise reduction algorithms are applied, along with a next-generation
low-noise sensor, effectively reducing noise.
# 20x Optical Zoom
Fast, accurate, and stable autofocus lens, capable of reaching 20x optical zoom and 12x digital zoom.
# Full HD Multi-Format Video Output
Supports high-definition video output in multiple formats including 1080P60/50/30/25, 1080I60/50, 720P60/50,
and more.
# RS-232C/RS485 (Optional) Remote Control (VISCA Protocol/Pelco-D/Pelco-P)
Using the RS-232C/RS485 (Optional) interface, all camera settings as well as pan/tilt/zoom operations can be
remotely controlled with high-speed communication. Through the RS-232 cascade interface, multiple cameras
can be connected (VISCA Protocol)
# Multi-Address Setting
The local address can be set via the menu/VISCA serial port command of the receiver
# 255 preset positions
255 positions can be pre-set via serial port, including horizontal, tilt, and zoom presets. Even if the camera
loses power, the preset data can be saved.
# Multi-functional remote control
Equipped with an easy-to-operate remote control, in addition to being able to perform basic settings and control
functions such as horizontal, tilt, and zoom, it can also call up the menu to set relevant camera parameters through
the remote control.
# Infrared Remote Control Signal Passthrough Function
Optional Camera Mirror and Flip Function
In addition to being able to receive its own dedicated remote control signals, it can also receive infrared remote
control signals from user video conference terminals. It uploads these signals to the video conference terminal
via a serial port, replacing the infrared receiving port of the user's video conference terminal. As a result,
the user terminal can be placed in the background.
Structurally supports camera inversion, and can change installation methods through OSD menu or sending
serial commands
OSD English-Chinese Menu Function
Rich OSD menu, Chinese and English OSD menu controllable by remote control
Conference systems, telemedicine, distance teaching, etc.
