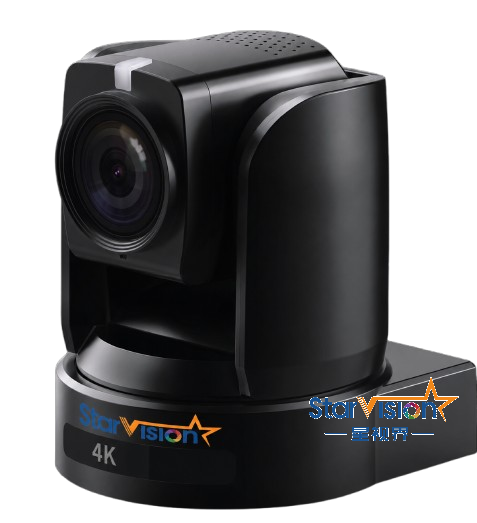

SV2000USH

4KP60 Professional Broadcast PTZ Camera

60FPS 4K UHD　|　Dual HDMI + Dual 12G-SDI + USB3.0 + LAN　|　20/30X Optical Zoom

Overview

The SV2000USH is a 4KP60 ultra-high-definition PTZ camera designed for professional broadcast applications. It adopts a 1/2.5-inch SONY Exmor R CMOS sensor to deliver crystal-clear 3840×2160P60 imaging while maintaining smooth motion. Equipped with dual HDMI, dual 12G-SDI, USB3.0 and network interfaces, and supporting NDI®|HX3 transmission and AI human auto-tracking, it suits professional broadcasting, teaching recording and a wide range of audio & video applications.

Key Features

4K Ultra-High Resolution

Adopting a 1/2.5-inch SONY Exmor R CMOS sensor with 8.51 effective megapixels to achieve true 4K HD imaging, downward compatible with 1080P, 720P and other resolution formats.

Low-Light, High SNR

Using 2D and motion-estimation-based 3D noise reduction algorithms together with a new-generation low-noise sensor to effectively reduce image noise and enhance performance in low-light conditions.

Multi-Ratio Optical Zoom

Supports multiple lens options: the 30X model offers up to 30X optical zoom and 16X digital zoom; the 20X model offers up to 20X optical zoom and 16X digital zoom.
20X field of view: 80.5° (wide) to 3.9° (tele)
30X field of view: 58.8° (wide) to 1.96° (tele)

Comprehensive Video Output

HDMI2.0: Supports 4KP60/50/30/25, 1080P60/50/30/25, 720P60/50 and more
12G-SDI: Supports 4KP60/50/30/25, 1080P60/50/30/25, 720P60/50 and more
USB3.0: Supports 4KP30/25, 1080P30/25, 720P30/25 and more
IP (Network): Supports 4KP30/25, 1080P30/25, 720P30/25 and more

255 Position Presets

Up to 255 positions can be preset via the serial port, including pan, tilt and zoom parameters. Preset data is retained when the camera is powered off and can be recalled on the next startup.

AI Human Auto-Tracking

Equipped with advanced AI algorithms, a high-speed processor and exclusive image-processing algorithms to achieve monocular humanoid auto-tracking. Users can switch flexibly between real-time tracking and area tracking to meet different application needs.

Multifunctional Controller

Comes with an easy-to-operate remote controller. Beyond basic settings and image adjustment, the remote can call up the on-screen menu to configure the camera's parameters.

OSD Menu (Chinese / English)

Provides a rich OSD menu controllable via the remote, with bilingual Chinese and English on-screen display.

NDI®|HX3 Support (Optional)

NDI is a new-generation network video transmission technology featuring plug-and-play operation, low latency and easy deployment, with a robust ecosystem supporting synchronized transmission of audio, video and control signals.

Applications

Professional broadcasting, teaching recording, digital conferencing systems, teleconferencing, telemedicine, emergency command, cultural and sports performances, etc.
