Crystal Phase Optoelectronics JX-K351P is a new 2K2K square resolution CMOS image sensor that provides back-illuminated + near-infrared (BSI/NIR) technology and full-time low-power consumption mode。
Paired with different back-end platform SOCs, it can be applied to wide viewing angle applications such as: hemispheric dome, fisheye and smart doorbell。

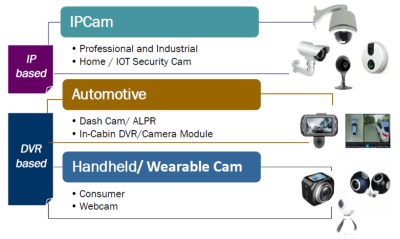

►Scenario application diagram
SOI-SOI

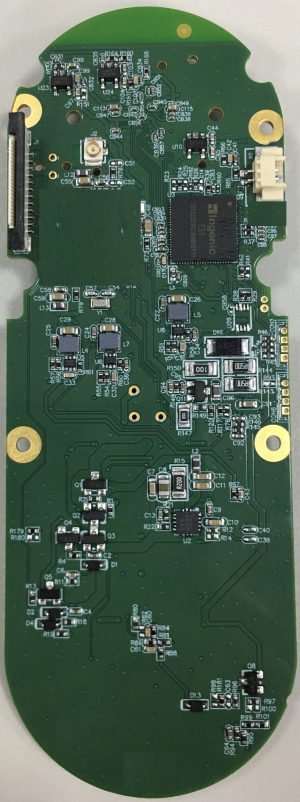

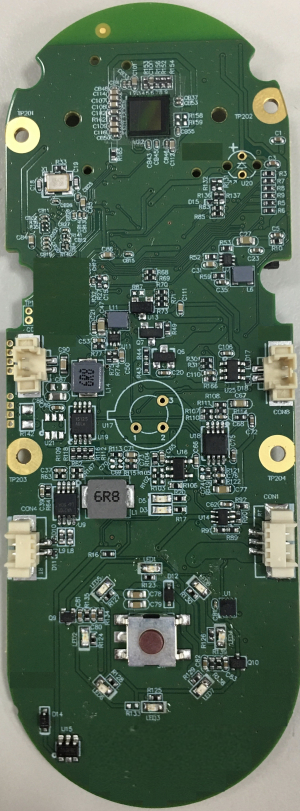

►Display board photo

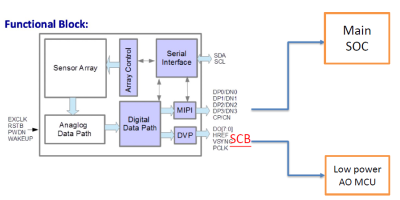

►Solution block diagram
SOI-SOI
►Core technology advantages
1. SOI JX-K351P is an industry-new 1/3.2-inch 4.0MP CMOS digital image sensor that provides back-illuminated + near-infrared (BSI/NIR) technology to improve the quantum efficiency (QE) of sensors in the near-infrared region without sacrificing color fidelity in the visible spectrum. With this technology, the camera can use less infrared LED lights and still obtain high-quality images under low light and near-infrared conditions. 2. Excellent full-time low power consumption mode enables excellent pre-roll video recording function. Delivering high-quality images and performance for smart home surveillance applications, making it an ideal choice for battery-powered security cameras in today's smart home systems.
►Project specifications
Resolution: 4Mp 2008 (H) × 2008 (V) Pixel: 2.0um BSI Optical size: 1/3.2 inches Output interface: MIPI & DVP Maximum output detection rate: 60fps (Linear mode), HDR 2exp 30fps
